Isuzu D-Max 4WD not engaging fix
The Isuzu D-Max is renowned for its rugged reliability, but encountering a 4WD system that refuses to engage can be frustrating. This guide provides essential fixes for owners facing this common issue, from simple electrical glitches to mechanical failures.
When your four-wheel drive fails to activate, it often stems from faulty actuators, corroded connectors, or low transfer case fluid. We will walk through diagnostic steps to pinpoint the problem, starting with basic checks like vacuum lines on older models or electronic sensors on newer versions.
With practical solutions and safety tips, this article ensures you can restore your D-Max’s off-road capabilities without unnecessary workshop costs.
Common Causes and DIY Solutions for Isuzu D-Max 4WD Not Engaging
When your Isuzu D-Max 4WD system fails to engage, the most frequent culprits are often simple mechanical or electrical issues rather than a major transmission failure. The system relies on a combination of vacuum actuators, electrical solenoids, and manual shift mechanisms.
This content may interest you!
A broken vacuum hose is the number one cause, followed by a faulty 4WD control module or a sticking shift motor. Before taking your vehicle to a shop, inspect the visible vacuum lines running from the engine to the front differential for cracks or disconnections.
Also, check the 4WD indicator lights on the dashboard; if they flash or fail to illuminate, it typically points to an electrical problem rather than a mechanical jam.
Check the Vacuum System and Hoses
The Isuzu D-Max 4WD system uses engine vacuum to engage the front axle via a diaphragm actuator. A common failure is a dry-rotted or disconnected vacuum hose, especially near the engine's intake manifold or the front differential. To fix this, locate the small rubber hoses (usually 6mm or 8mm in diameter), and inspect them for cracks, splits, or loose ends.
If you find a break, simply replace the affected section with new vacuum line rated for automotive use. After replacement, start the engine and test the 4WD engagement with the transmission in neutral. A simple vacuum leak is often the easiest and cheapest fix for a non-engaging 4WD.
This content may interest you!
Inspect the 4WD Shift Actuator and Motor
If your vacuum lines are intact, the next likely issue is a seized or failing shift actuator located on the transfer case or front differential. Over time, corrosion and mud buildup can prevent the small electric motor or mechanical plunger from moving. To diagnose, safely raise the vehicle and locate the actuator bolted to the side of the transfer case.
Manually turn the shift shaft with a wrench (if accessible) to see if it moves freely. If it sticks, you may need to remove and clean the actuator using contact cleaner and apply dielectric grease. In many cases, tapping the actuator gently with a hammer while someone attempts to engage 4WD can temporarily free it.
Evaluate the 4WD Control Module and Electrical Connections
A faulty 4WD control module or poor electrical connections can prevent the system from receiving the command to engage. Start by locating the fuse box (both under the hood and inside the cabin) and checking the 4WD-related fuses (often labeled 4WD or TRANSFER).
Use a multimeter to test for power at the actuator connector when the 4WD button is pressed. If you have power but no actuator movement, the module may have a loose ground wire.
This content may interest you!

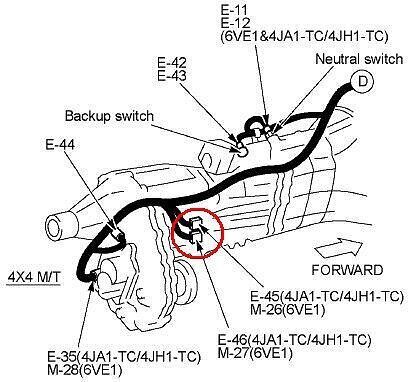

Clean all ground connections near the battery and the transfer case. Additionally, a bad shift position sensor on the transmission can confuse the control module, so ensure the vehicle is fully in neutral or park as required by manual instructions.
| Component | Common Symptom | Likely Cause | Primary Fix |
|---|---|---|---|
| Vacuum Hoses | No front axle engagement | Cracked or disconnected hose | Replace hose section |
| Shift Actuator | Grinding or no response | Seized motor or corrosion | Clean or replace actuator |
| Control Module | Flashing 4WD light | Bad ground or faulty module | Check fuses and grounds |
| Shift Position Sensor | System thinks in gear | Sensor misalignment | Adjust or replace sensor |
Frequently Asked Questions
Why won't my Isuzu D-Max 4WD engage?
Common causes include a faulty transfer case actuator, low transfer case fluid, or electrical issues like damaged wiring, blown fuses, or a malfunctioning 4WD control module. Also check the vacuum solenoid system if your model uses it. Start by inspecting fuses under the hood and dash, then test the actuator motor operation before moving to more complex components.
How do I manually engage the 4WD on my Isuzu D-Max?
Most models have a shift lever or rotary dial for 4WD selection. Ensure the vehicle is stationary with the engine running and transmission in neutral. Turn the dial to 4H or push the button. If electronic engagement fails, try shifting to neutral, stopping completely, and cycling the system. Some models have a manual locking hub option requiring you to lock front wheels manually.
What does a clicking sound when engaging 4WD mean?
A clicking noise usually indicates the transfer case actuator or shift fork is trying to engage but failing due to insufficient hydraulic pressure, broken gears, or electrical signal interruption. This often happens after off-road use when debris contaminates the actuator. Try disconnecting the battery for 10 minutes to reset the system. Persistent clicking requires actuator replacement or transfer case inspection.
This content may interest you!
Can low battery cause Isuzu D-Max 4WD not to engage?
Yes, a weak battery below 12.4 volts often prevents 4WD engagement because the system requires consistent voltage for the electronic actuator and control module. Check battery charge and clean corroded terminals. A failing alternator can also cause voltage drops. Jump-starting or charging the battery may temporarily restore 4WD function, but replace the battery if it is over three years old.
