Mazda CX-5 timing chain replacement guide

Maintaining the reliability of your Mazda CX-5 involves understanding its timing chain system, a critical component that ensures engine synchronization. Unlike a timing belt, the chain is designed for long-term durability, yet it may still require replacement due to wear over extended mileage.

This guide provides a comprehensive walkthrough for replacing the timing chain on a Mazda CX-5, covering essential tools, step-by-step procedures, and key precautions. Whether you’re a seasoned mechanic or a dedicated DIY enthusiast, this article aims to simplify the process, helping you avoid costly repairs and keep your vehicle running smoothly.

How to Replace the Timing Chain on a Mazda CX-5: A Step-by-Step Guide

Replacing the timing chain on a Mazda CX-5 is a critical maintenance procedure that should be addressed if symptoms like rattling noises, engine misfires, or a check engine light appear, especially in models with the 2.0L or 2.5L SkyActiv-G engines.

Unlike a timing belt, a timing chain is designed to last the engine's lifetime, but factors like oil starvation, wear, or tensioner failure can necessitate replacement.

This process requires mechanical expertise and specialized tools, as it involves removing the front engine cover, crankshaft pulley, valve cover, and carefully aligning timing marks to prevent catastrophic engine damage. Always consult your vehicle's service manual and disconnect the battery before starting.

Common Symptoms Indicating Timing Chain Issues

The most common sign of a failing timing chain in a Mazda CX-5 is a consistent rattling or slapping noise coming from the front of the engine, especially upon cold start, which often results from a worn chain or a faulty tensioner. You may also notice a check engine light with trouble codes like P0015 or P0011 related to variable valve timing (VVT) system performance.

Rough idling, reduced engine power, and difficulty starting the vehicle can indicate the chain has stretched or jumped a tooth, compromising the synchronization between the crankshaft and camshaft.

Required Tools and Parts for the Replacement

For this job, you will need a comprehensive set of tools including a socket set with metric sizes, a torque wrench, a crankshaft pulley puller, a harmonic balancer holder, and a timing chain tensioner compression tool specifically for SkyActiv engines.

Essential new parts include a complete timing chain kit (chain, guides, tensioner, and sprockets), a new crankshaft seal and front cover gasket, plus high-quality engine coolant and oil. Using OEM or high-quality aftermarket components is crucial, as substandard parts can lead to premature failure and repeated labor costs.

Step-by-Step Replacement Process Overview

Begin by draining the engine oil and coolant, then removing the serpentine belt, crank pulley, and valve cover to access the front engine cover. After removing the cover, rotate the crankshaft to align its timing mark (TDC) with the camshaft sprocket marks, ensuring both are locked in position using appropriate pins.

Next, unbolt the old tensioner, guides, and chain, install the new chain exactly as the old one was routed, and set the new tensioner using the compression tool. Finally, reinstall the front cover with new gaskets, torque every bolt to specification, reassemble the remaining components, and perform a thorough leak inspection before starting the engine.

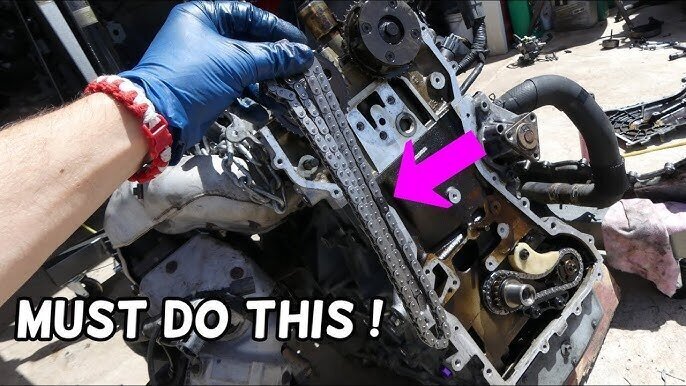

Mazda CX-5 Timing Chain Replacement: A Step-by-Step Guide

Can a Mazda CX-5 be driven safely with a faulty timing chain guide?

Driving a Mazda CX-5 with a faulty timing chain guide is not safe and is strongly discouraged. The timing chain guide is a critical component that maintains the tension and alignment of the timing chain, which synchronizes the engine's camshaft and crankshaft.

Mitsubishi ASX battery replacement guide

When the guide fails, the chain can become loose, slip, or even break, leading to catastrophic engine damage, such as valve-piston contact, bent valves, or a seized engine. This can result in sudden loss of power while driving, increased risk of accidents, and expensive repairs.

Even if the vehicle seems to run initially, symptoms like rattling noises, check engine lights, or rough idling indicate imminent failure. It is recommended to stop driving immediately and have the guide replaced by a professional mechanic to avoid safety hazards and further mechanical issues.

Risks of Driving with a Faulty Timing Chain Guide

Potential for Sudden Engine Failure While Driving

A faulty timing chain guide can cause the timing chain to lose its proper tension, leading to chain slack or misalignment. Over time, this increases the risk of the chain skipping teeth on the sprockets or breaking entirely.

If the chain fails while the engine is running, the pistons and valves may collide due to loss of synchronization, resulting in immediate engine stoppage or severe internal damage. This can occur without warning, even at highway speeds, creating a dangerous situation where the driver loses control of acceleration and steering assistance.

1. A loose chain can produce loud rattling or slapping noises from the engine bay, often intensifying with acceleration.
2. Ignoring these sounds may lead to the chain jumping off the sprockets, causing the engine to stall instantly.
3. Sudden engine failure can disable power brakes and power steering, increasing the risk of collisions.

Symptoms of a Failing Timing Chain Guide in a Mazda CX-5

Audible Warning Signs and Performance Changes

The first indication of a failing timing chain guide is typically a metallic rattling or clattering sound from the front of the engine, especially during cold starts or idle. This noise results from the chain slapping against the broken or worn guide. As the condition worsens, the engine may experience misfires, reduced power, or difficulty starting due to altered timing.

The check engine light may illuminate with diagnostic trouble codes related to camshaft or crankshaft position correlation, such as P0016 or P0017. These symptoms require immediate inspection to prevent escalation.

1. Listen for intermittent or persistent rattling that increases with engine speed, indicating guide wear.
2. Notice rough idling, hesitation, or a drop in fuel efficiency as timing deviation affects combustion.
3. Diagnostic scans may reveal codes for timing chain issues, confirming the need for replacement.

Consequences of Delaying Timing Chain Guide Repair

Long-Term Damage to Engine Components

Postponing repairs on a faulty timing chain guide can lead to cascading engine damage that far exceeds the cost of a simple guide replacement. As the guide degrades, plastic or metal fragments can break off and circulate through the engine oil, clogging oil passages and contaminating bearings, tensioners, and the oil pump.

Continued operation places excessive stress on the timing chain itself, which may stretch or wear unevenly, requiring a full timing chain kit replacement. In severe cases, the chain can snap, destroying the engine and necessitating a complete overhaul or replacement.

1. Debris from a broken guide can obstruct the oil pickup tube, leading to oil starvation and bearing failure.
2. Chain misalignment can cause premature wear on sprockets and the variable valve timing system.
3. A snapped chain often results in bent valves, damaged pistons, and cylinder head destruction.

What are the key considerations for replacing the timing chain on a Mazda CX-5?

The key considerations for replacing the timing chain on a Mazda CX-5 involve careful assessment of symptoms, part quality, and procedural complexity. First, confirm that the timing chain requires replacement by listening for a rattling noise from the engine, especially on cold starts, which indicates chain stretch or tensioner failure.

Second, inspect for oil contamination or low oil pressure, as these can accelerate chain wear. Third, use only OEM or high-quality aftermarket parts to ensure proper fit and durability, as inferior chains may fail prematurely. Fourth, note that the replacement requires removing the engine front cover, crankshaft pulley, and valve cover, which demands significant labor time and specialized tools like a timing chain holding tool.

Finally, consider the overall engine condition; if the chain has failed catastrophically, inspect valves and pistons for damage. Professional installation is recommended due to the risk of timing misalignment, which can cause engine damage.

Diagnosing Timing Chain Wear in a Mazda CX-5

Identifying Audible and Visual Signs of Chain Stretch

One of the primary considerations is confirming that the timing chain is actually worn before starting the replacement. A stretched chain often produces a distinct rattling or slapping sound from the front of the engine, particularly when the engine is cold or at idle. This noise is caused by the chain slackening against guides and the tensioner.

Isuzu D-Max gearbox service interval

Visually, you may find metal particles in the engine oil during an oil change, indicating guide material or chain wear. Additionally, a systematic check of engine codes is necessary; while a worn chain rarely triggers a check engine light directly, related issues like variable valve timing (VVT) solenoid faults can occur due to oil flow problems from chain debris.

1. Listen for a persistent rattling noise, especially during cold starts or at low RPM.
2. Perform an oil analysis or inspect the oil filter for metallic debris, which indicates internal wear.
3. Monitor engine performance for rough idle, hesitation, or a check engine light related to VVT (codes like P0011 or P0012).

Selecting the Correct Replacement Parts for a Mazda CX-5

OEM Versus Aftermarket Components and Their Impact

Choosing the right timing chain kit is critical for long-term reliability. For a Mazda CX-5, it is highly recommended to use an original equipment manufacturer (OEM) kit from Mazda, as these are engineered to the precise specifications of the SkyActiv engine.

Aftermarket kits vary in quality; some may have chains that stretch sooner or tensioners that lack proper hydraulic dampening. A complete kit should include the timing chain, both upper and lower guides, the tensioner, and the tensioner arm. Additionally, consider replacing the crankshaft sprocket bolt, which is a torque-to-yield component and must be installed new to avoid loosening.

Failing to replace seals and gaskets for the front cover and valve cover during the assembly will lead to oil leaks, so these should be part of the parts order.

1. Purchase a full timing chain kit designed specifically for the Mazda CX-5 engine (2.0L or 2.5L SkyActiv).
2. Ensure the kit includes new guides, tensioner, chain, and necessary gaskets or sealant for the front cover.
3. Always replace the crankshaft pulley bolt and any camshaft sprocket bolts that are torque-to-yield.

Procedural Steps and Special Tools for Timing Chain Replacement

Safe Disassembly and Alignment Requirements

Replacing the timing chain on a Mazda CX-5 is not a simple task and requires following a strict service procedure to prevent engine damage. The engine must be set to top dead center (TDC) on cylinder 1 before removing any components. Special tools are mandatory: a crankshaft holding tool to keep the pulley from rotating, and a camshaft alignment tool to lock the camshafts in the correct position.

The process involves removing the serpentine belt, crankshaft pulley, engine front cover, oil pan (or dropping the pan for access), and valve cover. After installing the new chain, you must rotate the engine by hand two full revolutions to verify that the timing marks align perfectly. If the engine is not properly timed, it will run poorly or may result in valve-to-piston contact.

1. Secure the engine at TDC for cylinder 1 using the crankshaft and camshaft alignment tools.
2. Remove the front engine cover, crankshaft pulley, and all timing components while marking the old chain’s position for reference.
3. After installing the new chain and tensioner, manually rotate the crankshaft two full turns to confirm timing accuracy without piston interference.

Frequently Asked Questions

How often should the timing chain be replaced on a Mazda CX-5?

The timing chain in a Mazda CX-5 is designed to last the engine's lifetime under normal conditions. However, replacement is typically recommended between 100,000 to 150,000 miles, especially if you hear rattling noises or experience performance issues. It’s crucial to inspect the chain tensioner, guides, and sprockets during replacement, as wear can occur.

Always consult your owner’s manual for specific intervals based on your driving habits.

What are the symptoms of a failing timing chain in a Mazda CX-5?

Common symptoms include a rattling or slapping noise from the front of the engine, especially during cold starts or acceleration. You might also notice poor engine performance, misfires, a check engine light, or difficulty starting the car. In severe cases, the chain can cause significant internal damage if it breaks or slips.

If you detect any of these signs, inspect or replace the timing chain promptly to avoid costly repairs.

Can I replace the timing chain myself on a Mazda CX-5?

While possible, replacing the timing chain on a Mazda CX-5 is a complex job that requires mechanical experience, specialized tools (like timing chain tensioner tools), and precise alignment. You need to remove the crankshaft pulley, valve cover, and engine mounts. Mistakes can lead to severe engine damage.

If you’re not highly skilled, it’s safer to have a professional mechanic handle the replacement to ensure proper installation and timing.

Isuzu D-Max maintenance schedule Australia

What parts are needed for a Mazda CX-5 timing chain replacement?

A complete timing chain replacement kit for a Mazda CX-5 typically includes the timing chain, chain tensioner, chain guides, and crankshaft sprocket. You may also need new camshaft phasers, gaskets (e.g., valve cover and front cover), and sealant. Using OEM or high-quality aftermarket parts ensures longevity and proper fit. The kit often includes bolts and washers, but verify compatibility with your specific engine model (e.g., 2.0L or 2.5L) before purchasing.
