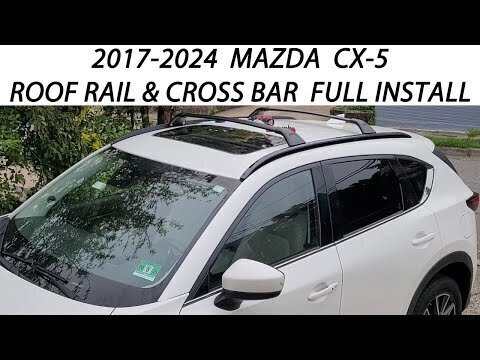

Mazda CX-5 roof racks installation guide

Installing a roof rack on your Mazda CX-5 can significantly expand your vehicle's cargo capacity, transforming it into an ideal companion for camping trips, ski adventures, or moving bulky items. This guide provides a step-by-step process to ensure a secure and efficient installation. Whether you're a seasoned DIY enthusiast or a first-timer, understanding the specific requirements for the CX-5—such as locating attachment points, selecting compatible crossbars, and securing loads properly—is crucial. From verifying model year compatibility to tightening bolts to manufacturer specifications, this article covers essential techniques and safety tips, helping you avoid common pitfalls and achieve a reliable setup that maintains your vehicle's sleek profile.

Installing Roof Racks on Your Mazda CX-5: A Step-by-Step Guide

Installing roof racks on a Mazda CX-5 is a straightforward DIY project that significantly expands your vehicle's cargo capacity. This guide covers the essential steps and considerations for a safe and secure installation, ensuring you can transport kayaks, bikes, or luggage with confidence. Always refer to your specific roof rack kit's instructions, as compatibility and mounting points vary based on your CX-5 model year (especially between the second-generation 2017-2022 and the newer 2023+ models).

Pre-Installation: Tools and Safety Precautions

Before you begin, gather your specific roof rack kit, which typically includes crossbars, mounting brackets, and rubber pads or strips. You will need a torque wrench to avoid overtightening bolts, a tape measure, and a cleaning cloth. Park your CX-5 on a level surface and carefully read the manufacturer's instructions included with your kit. Check your owner's manual for the maximum dynamic roof load capacity (usually around 165 lbs or 75 kg). Wear gloves to protect your hands from sharp edges and ensure the roof surface is clean and dry.

Mounting the Crossbars to the Factory Rails

Your Mazda CX-5 likely comes with factory-installed side rails (on most trims above the base model). Begin by opening the access covers on each side rail to expose the mounting points. Position the front and rear crossbars at the recommended spacing (usually indicated in the rack manual), ensuring they are parallel and centered on the vehicle. Place the mounting brackets over the rail slots and hand-tighten the bolts first. Use the torque wrench to tighten each bolt to the specified torque value (e.g., 8 Nm or 6 ft-lbs). Finally, install any included rubber trim or aerodynamic covers to reduce wind noise.

Final Checks and Securing Your Load

After installation, give each crossbar a firm shake to confirm they are locked in place. Test the security by pulling on them from various angles—there should be zero movement. Attach your bike, kayak, or cargo box according to its manufacturer's guidelines, always using soft straps or specific mounting hardware to avoid scratching the paint. For heavy items, place the heaviest part near the center of the crossbars. Double-check all straps and locks before driving, and periodically re-tighten the rack bolts after the first 50 miles of driving as they may settle.

Step-by-Step Installation Guide for Mazda CX-5 Roof Racks

How to install a roof rack on a Mazda CX-5?

To install a roof rack on a Mazda CX-5, you first need to identify the correct roof rack system compatible with your vehicle year and model, as Mazda offers both factory-installed roof rails and aftermarket options. Begin by gathering the necessary tools, typically a torque wrench, a set of hex keys, and the mounting hardware provided with your rack kit. Ensure your CX-5 is parked on a level surface and the roof is clean and dry. If your vehicle has bare roof rails, locate the mounting points, which are usually covered by plastic trim pieces along the roof channels. Carefully remove these trim covers using a trim removal tool to expose the threaded mounting holes. Align the crossbars onto the mounting points, making sure they are evenly spaced and positioned to avoid interference with the rear hatch or sunroof. Insert the bolts or screws into the holes and tighten them by hand first, then use a torque wrench to tighten them to the manufacturer specified torque setting, typically around 6-8 Nm for most Mazda systems. Finally, double-check all connections and perform a shake test to ensure the rack is secure before loading any cargo.

Isuzu D-Max bull bar installation cost

Choosing the Correct Roof Rack System for Your Mazda CX-5

Factory vs Aftermarket Options and Compatibility

Selecting the right roof rack system for your Mazda CX-5 is crucial for safety and fit. Factory racks from Mazda are designed specifically for your vehicle trim, ensuring perfect alignment with existing mounting points, while aftermarket brands like Thule or Yakima offer more versatility for different cargo types but may require additional adapters. To make an informed choice, follow these steps:

1. Check your CX-5 production year and trim level by looking at the driver side door jamb sticker to confirm if it has factory roof rails or bare roof channels.
2. If you have bare roof channels without rails, purchase a complete crossbar system designed for this specification, such as the Mazda Genuine Crossbars or an aftermarket equivalent that lists your model year in its compatibility chart.
3. For vehicles with factory roof rails, measure the distance between the front and rear rails to select crossbars that fit within that span, ensuring they do not exceed the rated weight capacity printed on the rail label.
4. Verify that the system's load rating matches your intended use, such as carrying kayaks, bikes, or cargo boxes, and consider aerodynamic crossbars to reduce wind noise and fuel consumption.

Step-by-Step Crossbar Installation Process

Detailed Procedure for Mounting and Securing Crossbars

Once you have your roof rack system, precise installation is necessary to prevent damage to your vehicle and ensure safe cargo transport. The process varies slightly between factory and aftermarket kits, but the core steps remain similar for most Mazda CX-5 models. Proceed with the following detailed steps:

1. Park your CX-5 on a flat surface and clean the roof area around the mounting points with a mild detergent to remove dirt and wax that could interfere with the grip of the rack's rubber pads.
2. Locate the four mounting points: on bare roof models, these are the trim covers along the roof channels; on models with rails, they are the attachment slots on top of the rails. Use a plastic trim removal tool to gently pry off the covers without scratching the paint.
3. Align the crossbar brackets directly over the exposed mounting holes or slots, ensuring the rubber or plastic base of the brackets sits flush against the roof or rail surface to avoid leaks or movement.
4. Insert the provided bolts, screws, or locking mechanisms into the holes and tighten them alternately in a star pattern using a hex key or socket wrench, starting with light pressure before applying full torque to avoid cross-threading.
5. Use a torque wrench to tighten each fastener to the manufacturer specification, typically between 4.5 and 8 Nm for Mazda systems, and avoid overtightening which can strip the threads or crack the roof trim.

Safety Checks and Maintenance After Installation

Verifying Security and Long-Term Care of Your Roof Rack

After installing the roof rack on your Mazda CX-5, conducting thorough safety checks and performing routine maintenance will extend the life of the system and prevent accidents. Load limits vary, but most CX-5 roof racks can handle up to 100 kg when properly mounted. Follow these guidelines to ensure ongoing safety:

Mazda CX-5 timing chain replacement guide

1. Perform a shake test by gripping each crossbar firmly and trying to move it sideways and up-down; if there is any play, retighten the fasteners in sequence until the system is rigidly secured to the vehicle.
2. Take a short test drive at low speed, then stop and recheck all bolts and brackets for looseness, as initial use can settle the rack into place. Repeat this check after the first 10 miles.
3. Regularly inspect the rubber or plastic contact pads for signs of wear or cracking, especially after exposure to UV light or extreme weather, and replace them if they show deterioration to maintain a weatherproof seal.
4. Clean the rack and mounting points every three months using a mild soap and water solution, avoiding abrasive cleaners that could damage the finish, and lubricate any moving parts like locking knobs with a silicone-based spray to prevent corrosion.

What common issues arise during Mazda CX-5 roof rack installation?

Installing a roof rack on a Mazda CX-5 often presents several common issues. One frequent problem is misalignment of the rack crossbars with the vehicle's mounting points, which can occur if the rack is not properly adjusted to the specific roof contour of the CX-5 model year. Another issue is the risk of scratching or damaging the vehicle's paint or roof trim due to improper handling or lack of protective padding during installation. Additionally, users sometimes encounter difficulties with tightening the rack securely, leading to instability or noise while driving, especially if the installation instructions are not followed precisely.

Incorrect Fitment and Compatibility

Understanding fitment errors specific to Mazda CX-5 roof rack installation

Incorrect fitment is a primary issue during roof rack installation on the Mazda CX-5, often resulting from variations between model years or different roof styles, such as those with flush rails versus naked roofs. Many aftermarket racks may not align perfectly with the factory mounting points, requiring adjustments or additional adapter kits. This misalignment can cause the rack to sit unevenly, affecting both aesthetics and functionality.

1. Measure the distance between front and rear mounting points to ensure compatibility with the rack design.
2. Verify the rack model is rated for the specific Mazda CX-5 year and roof type before purchasing.
3. Consult the vehicle manual to identify any unique roof features, like sunroof clearance issues.

Damage to Vehicle Paint or Roof Trim

Addressing potential scratches and dents during roof rack installation

Damage to the Mazda CX-5's paint or roof trim is a common concern, typically caused by metal rack components scraping against the vehicle surface during installation. The roof's curved design and delicate trim strips are especially vulnerable if users fail to use protective pads or if the rack clamps are not cushioned. Such damage can lead to rust or costly repairs if not avoided.

Mitsubishi ASX tyre replacement guide Australia

1. Apply painter's tape or rubber padding to all contact points between the rack and roof before securing the rack.
2. Clean the roof area thoroughly to remove debris that could scratch the paint during installation.
3. Use a torque wrench to tighten bolts evenly, avoiding overtightening that might dent the roof panel.

Noise and Instability After Installation

Resolving aerodynamic and security problems with Mazda CX-5 roof racks

Post-installation, many Mazda CX-5 owners experience excessive wind noise or a loose-feeling rack, often due to improper tightening or poor aerodynamic design of the rack crossbars. The vehicle's roof shape can amplify wind turbulence if the rack is not positioned optimally, and under-torqued fasteners may allow movement over bumps. These issues reduce driving comfort and could compromise load safety.

1. Inspect all bolts and clamps after a test drive and retighten them to the manufacturer's recommended torque specification.
2. Position crossbars as close to the roof's center as possible to minimize wind drag and noise.
3. Apply a rubber seal or wind deflector to the front crossbar to reduce whistling sounds at highway speeds.

Frequently Asked Questions

What tools are required to install a roof rack on a Mazda CX-5?

To install a roof rack on a Mazda CX-5, you typically need a torque wrench, a Phillips head screwdriver, and the provided Allen keys. The vehicle’s roof has pre-drilled mounting points beneath plastic trim covers. You must remove these covers using a trim removal tool or flathead screwdriver with care to avoid paint damage. Always check your specific rack kit instructions, as some crossbar systems require additional tools like a socket wrench for bolt tightening.

Can I install a Mazda CX-5 roof rack without drilling?

Yes, the Mazda CX-5 is designed with factory-installed mounting points, so no drilling is necessary. The roof has four covered attachment holes located under the side rail trim strips. You simply remove the covers, attach the brackets provided in your rack kit to these points, and secure the crossbars. This drill-free installation preserves the vehicle’s structural integrity and warranty, provided you follow the manufacturer’s torque specifications for bolts.

Mazda CX-5 spare parts price Australia

How do I ensure the roof rack is properly aligned on my CX-5?

To align the roof rack correctly on your Mazda CX-5, first place the crossbars on the mounting brackets without tightening them fully. Use a measuring tape to check that both bars are equidistant from the vehicle’s front and rear edges. Adjust each bar so they sit parallel to the ground and perpendicular to the roof rails. Once positioned, tighten all bolts gradually and evenly, following the torque settings specified in your installation guide to avoid misalignment or roof damage.

Will installing a roof rack affect my Mazda CX-5’s sunroof operation?

A properly installed roof rack on a Mazda CX-5 should not interfere with the sunroof. The mounting points are located on the side rails, which are separate from the sunroof mechanism. However, ensure that crossbars are positioned at least 2 inches above the roof surface to allow clearance for the sunroof when tilted. Verify the rack’s front bar is placed behind the sunroof’s open position, as improper positioning could block its movement or create wind noise.
